3~5Ton Diesel forklift
Models: CPC – 3/5T
The Huajing HT-CPC Series is a diesel-powered internal combustion counterbalance forklift built for outdoor yards, construction sites, loading docks, and heavy-duty applications where electric trucks reach their limits. Covering 3.0 to 5.0 tons with XinChai diesel engines, pneumatic tires, and travel speeds up to 19 km/h, the CPC Series delivers raw power and all-terrain capability at factory-direct pricing.
CE, ISO, and EPA certified, every unit features forged steel forks, a thickened mast frame, and a 15% full-load gradeability for ramp and slope operations. Customizable mast heights, LPG dual-fuel options, and a full range of attachments are available on all models.
XinChai Diesel Engine
Proven Chinese diesel engine with high torque output — reliable cold starts, low fuel consumption, and wide parts availability.
Sealed Hydraulic Cylinder
Chrome-plated piston rod with reinforced sealing — leak-free lifting performance under continuous heavy-load cycles.
Pneumatic Thickened Tires
Deep-tread pneumatic tires handle gravel, dirt, uneven concrete, and outdoor surfaces that solid tires cannot.
Thickened Forged Forks
Heavy-duty forged steel forks from 45mm to 55mm thick — built to handle full-capacity loads without bending.
Simple Operating System
Automotive-style steering wheel with integrated hydraulic levers — intuitive controls, minimal operator training needed.

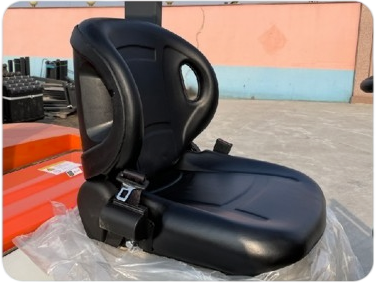

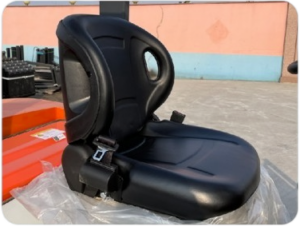

Comfortable Suspension Seat
Padded suspension seat with seatbelt and adjustable backrest — reduces whole-body vibration on rough terrain.
| Specification | Unit | HT-CPC30 | HT-CPC35 | HT-CPC40 | HT-CPC45 | HT-CPC50 |
| Rated Load | kg | 3,000 | 3,500 | 4,000 | 4,500 | 5,000 |
| Lift Height | mm | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| Max. Travel Speed | km/h | 18 / 19 | 19 | 19 | 18 / 19 | 18 / 19 |
| Max. Lifting Speed (laden/unladen) | mm/s | 440 / 480 | 330 / 370 | 340 / 380 | 420 / 460 | 400 / 380 |
| Max. Gradeability | % | 15 / 20 | 15 / 20 | 15 / 20 | 15 / 20 | 15 / 20 |
| Fork Dimensions (T×W×L) | mm | 1070×125×45 | 1070×125×50 | 1070×150×50 | 1070×150×50 | 1070×150×55 |
| Overall Size (L×W) | mm | 3,752 × 1,225 | 3,763 × 1,225 | 4,000 × 1,290 | 4,120 × 1,400 | 4,190 × 1,480 |
| Forklift Weight | kg | 4,250 | 4,500 | 4,950 | 5,860 | 6,700 |
| Engine | — | XinChai | XinChai | XinChai | XinChai | XinChai |
| Certifications | — | CE / ISO / EPA | CE / ISO / EPA | CE / ISO / EPA | CE / ISO / EPA | CE / ISO / EPA |
