Rider Electric Pallet Jack
Models: PT - 04
2,000 ~ 4,000 kg
Load Capacity
6.2 km/h (empty) / 4.5 km/h (loaded)
Travel Speed
~1,500 mm
Min. Aisle Width Required
12% (unloaded)
Max. Climbing Ability

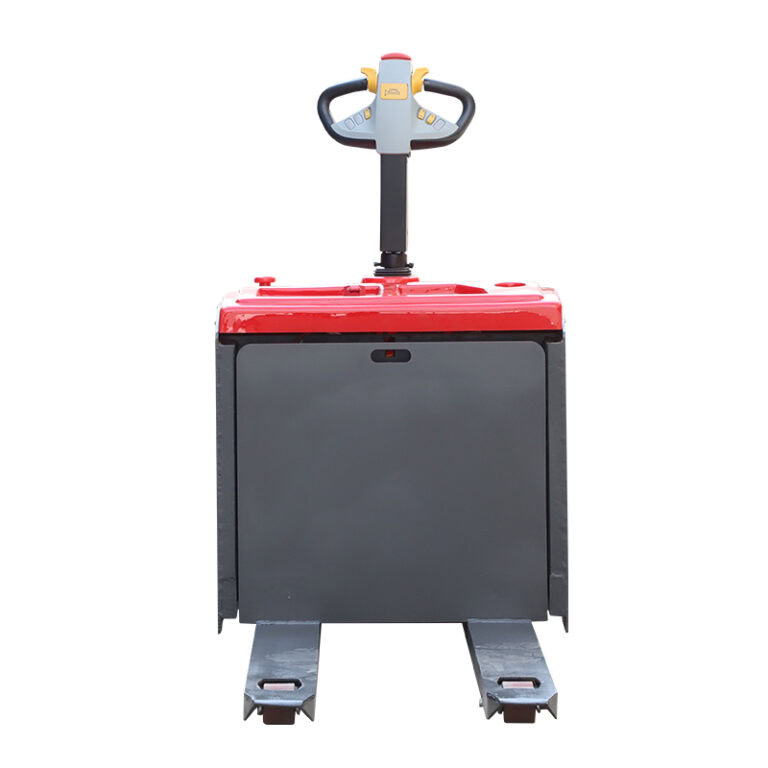

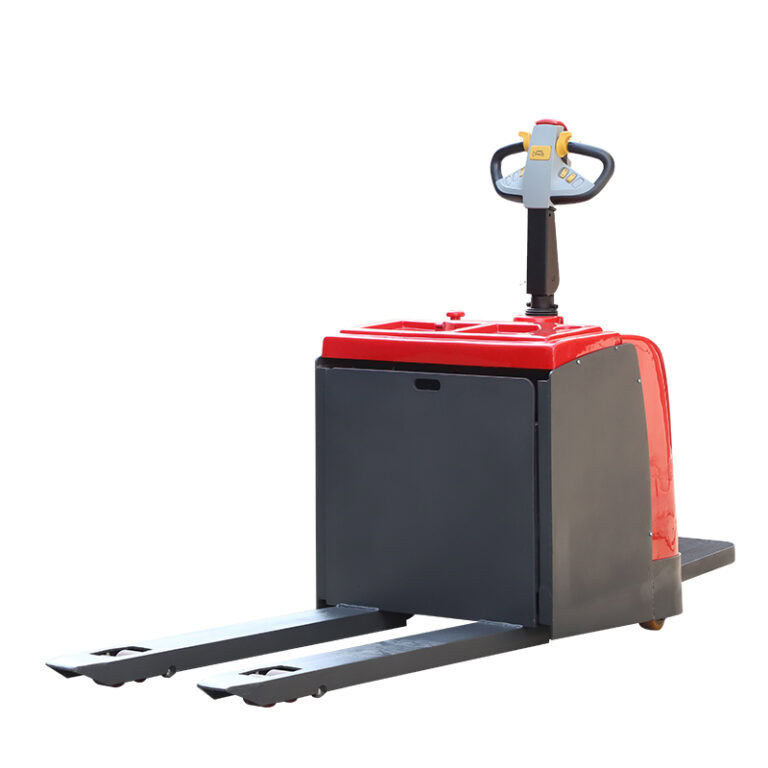

The HJ Stand-On Rider Pallet Jack delivers high-speed, high-capacity pallet transport for large warehouses and distribution centers. With a travel speed up to 6.2 km/h, reinforced forks, and load options up to 4,000 kg, it dramatically outperforms walk-behind models on long-distance runs and ramp applications.
Get a quote
Features
Gallery
Specifications
| Specification | Unit | Value |
| Rated Load | kg | 2,000 / 3,000 / 3,500 / 4,000 |
| Driving Mode | — | Stand-Up Rider |
| Load Center Distance | mm | 600 |
| Wheel Width | mm | 1,211 / 1,261 / 1,331 |
| Front Wheel Size | mm | 250 × 80 |
| Rear Wheel Size | mm | 80 × 70 |
| Front Wheel Track | mm | 580 |
| Rear Wheel Track | mm | 340 / 370 / 470 / 505 |
| Lifting Height | mm | 205 |
| Height When Lowered | mm | 80 |
| Overall Length | mm | 1,780 / 1,830 / 1,900 |
| Fork Face Length | mm | 680 |
| Fork Size | mm | 54 × 180 × 1,100 (1,150/1,220) |
| Body Width | mm | 754 |
| Fork Outer Width | mm | 550 / 650 / 685 |
| Turning Radius | mm | 1,482 / 1,608 / 1,678 |
| Travel Speed full / empty | km/h | 4.5 / 6.2 |
| Lifting Speed full / empty | m/s | 0.03 / 0.04 |
| Descending Speed full / empty | m/s | 0.05 / 0.045 |
| Max. Climbing Ability full / empty | % | 5月12日 |
| Drive Motor Power | kW | 1.5 |
| Lifting Motor Power | kW | 2.2 |
