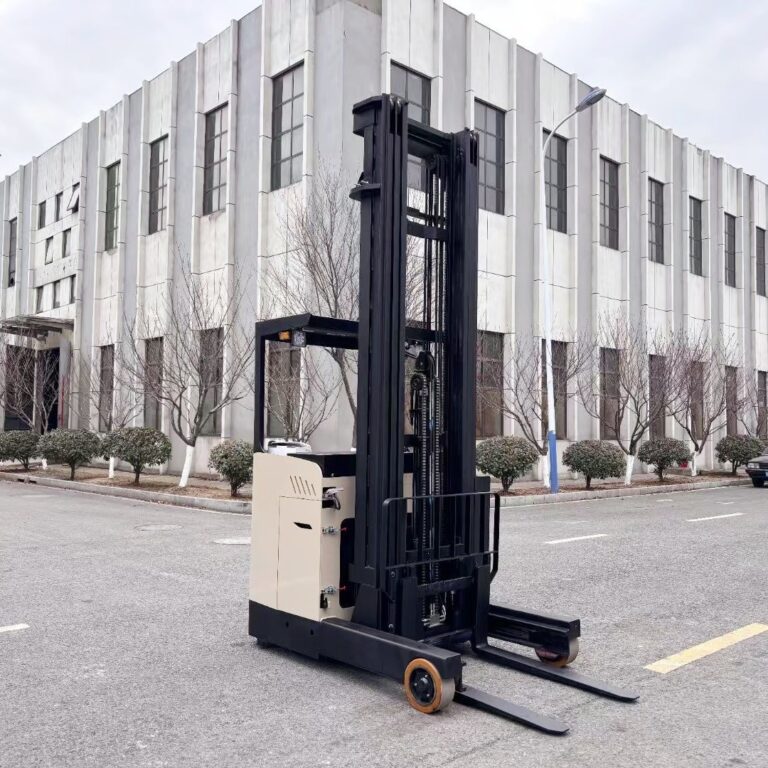

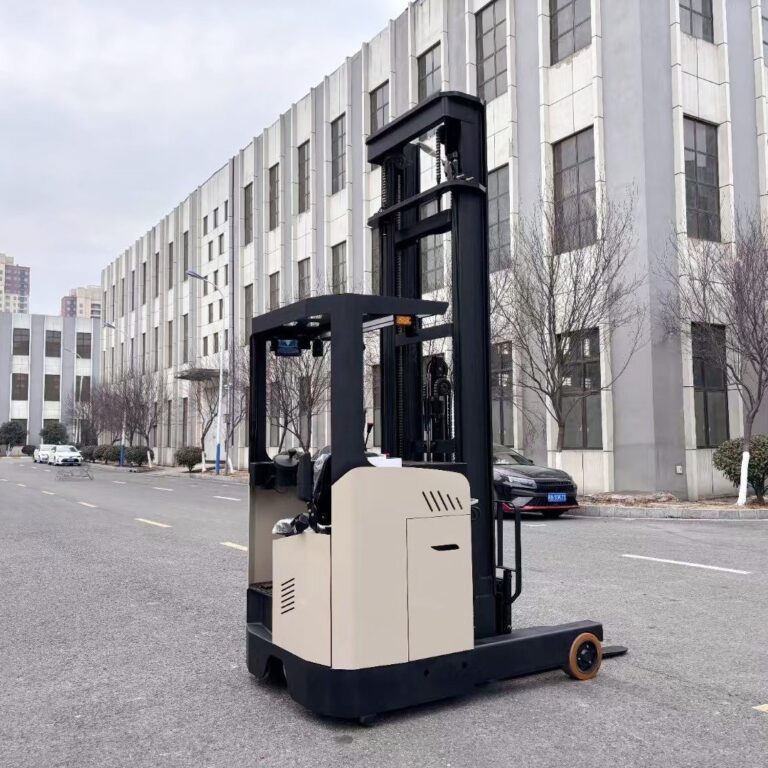

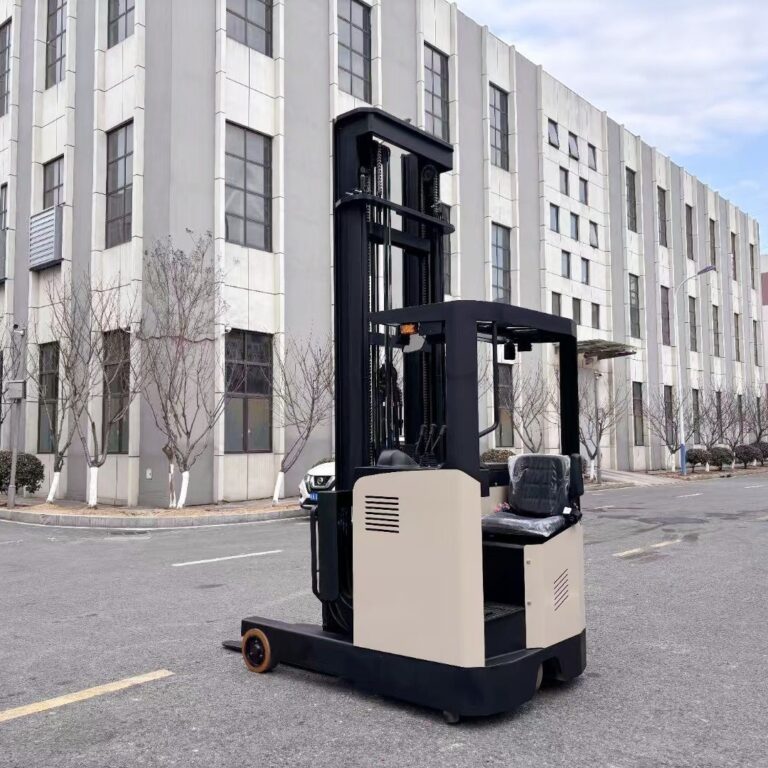

Sit-Down Reach Truck
Models: CQD - 1.5~2.0 Ton
The HUAJING RTD Series is a sit-down reach truck engineered for narrow-aisle warehouses where operators work extended shifts. With seated ergonomic controls and lift heights up to 6,000mm in aisles as narrow as 2,775mm, it delivers sustained productivity across 8-hour or multi-shift operations.
Available in 24V and 48V configurations from 1.5 to 2.5 tons, both platforms use AC drive systems with CURTIS controllers, electromagnetic regenerative braking, and electronic steering. The seated cabin reduces operator fatigue compared to stand-up models, making it the preferred choice for facilities prioritizing comfort and long-term workforce retention. Custom mast heights up to 8,000mm available on 48V models.

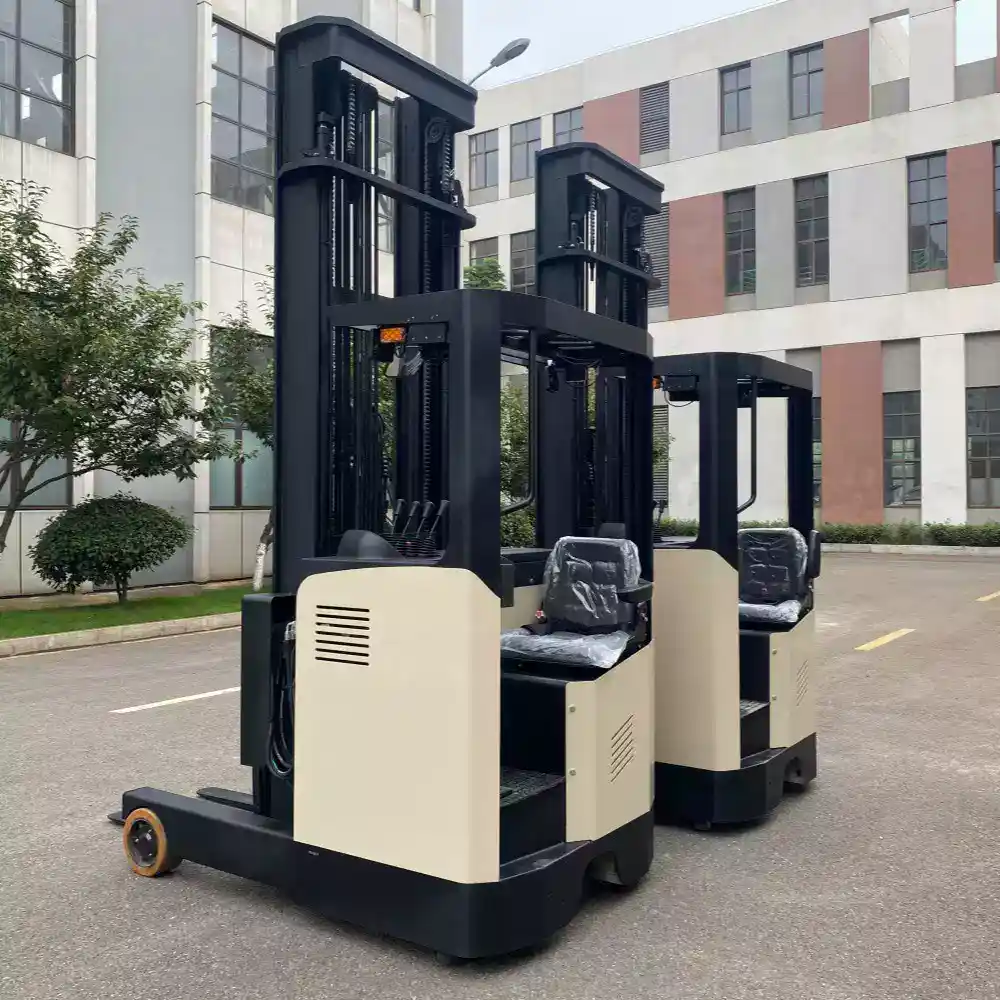

All-Shift Seated Comfort
Ergonomic seated cabin with adjustable controls reduces operator fatigue — built for 8-hour and multi-shift operations.
Narrow Aisle Mastery
Works in aisles as narrow as 2,775mm — maximize racking density without sacrificing load handling performance.
High-Bay Reach

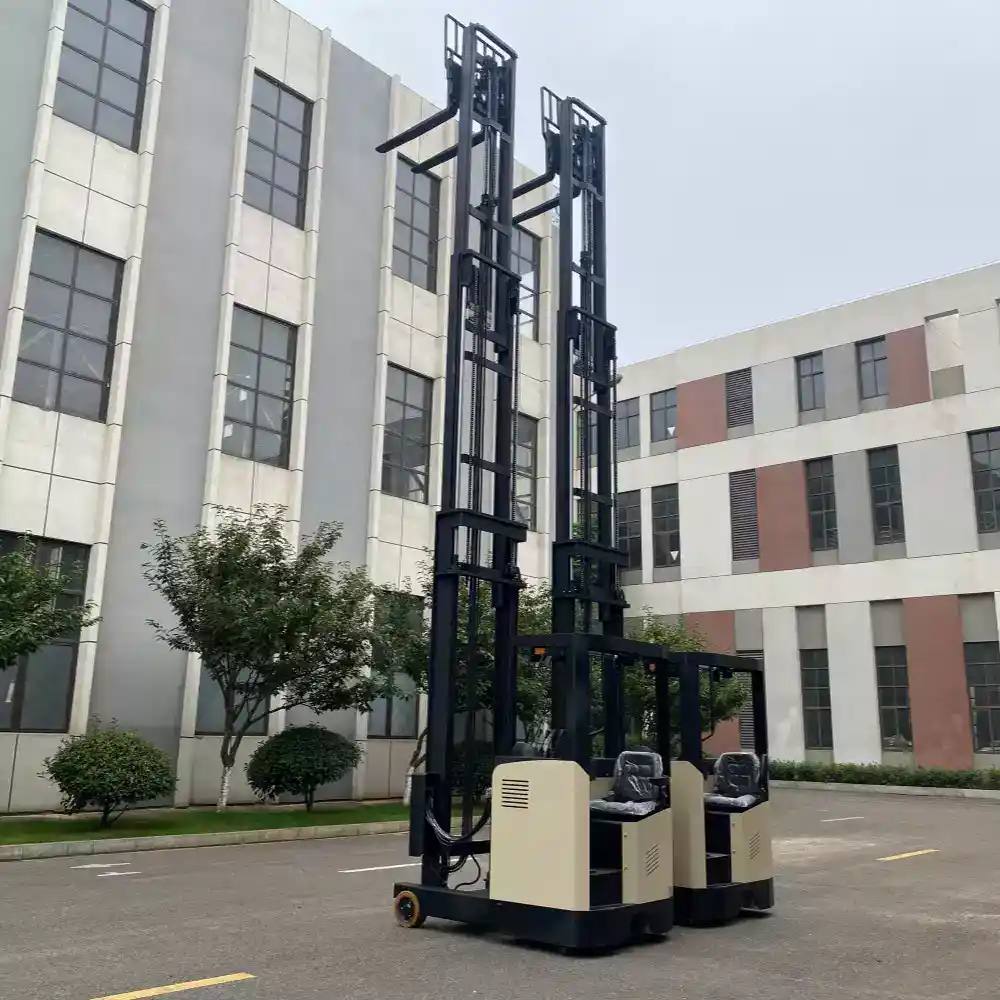

Standard lift up to 6,000mm with optional mast configurations to 8,000mm on 48V models for high-bay racking.
CURTIS AC Control System
US-brand controllers with built-in diagnostics — smooth acceleration, brushless reliability, easy troubleshooting.
Regenerative Braking
Recovers energy while braking and lowering, extending battery runtime per charge.
Auto Corner Deceleration
Automatically slows in turns — protecting operators, racking, and inventory.
| Specification | Unit | RTD15B | RTD20B | RTD16 | RTD20 | RTD25 |
| Rated Load | kg | 1,500 | 2,000 | 1,600 | 2,000 | 2,500 |
| Max. Lift Height | mm | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 |
| Free Lift Height | mm | 2,030 | 2,030 | 2,045 | 2,045 | 2,045 |
| Min. Aisle Width (1200×1000 pallet) | mm | 2,775 | 2,830 | 2,845 | 2,845 | 2,955 |
| Battery | V / Ah | 24 / 280 | 24 / 280 | 48 / 300 | 48 / 400 | 48 / 420 |
| Drive Motor | kW | 2.2 | 2.2 | 4.5 (AC) | 6.5 (AC) | 6.5 (AC) |
| Overall Size (L×W) | mm | 2,343 × 1,090 | 2,378 × 1,090 | 2,435 × 1,270 | 2,435 × 1,270 | 2,515 × 1,270 |
| Vehicle Weight (incl. battery) | kg | 2,600 | 2,720 | 3,150 | 3,350 | 3,430 |
