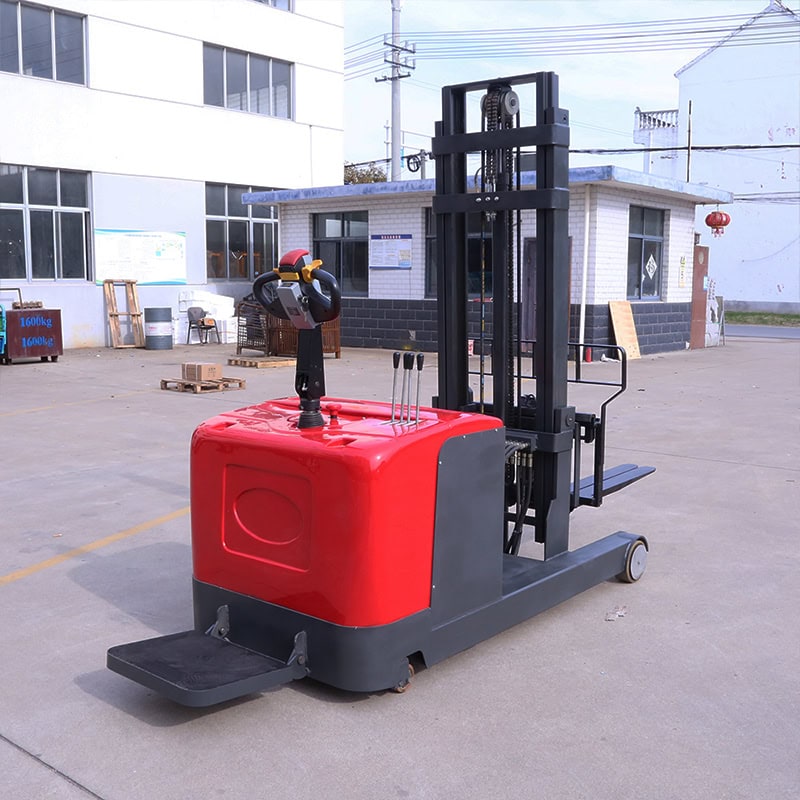

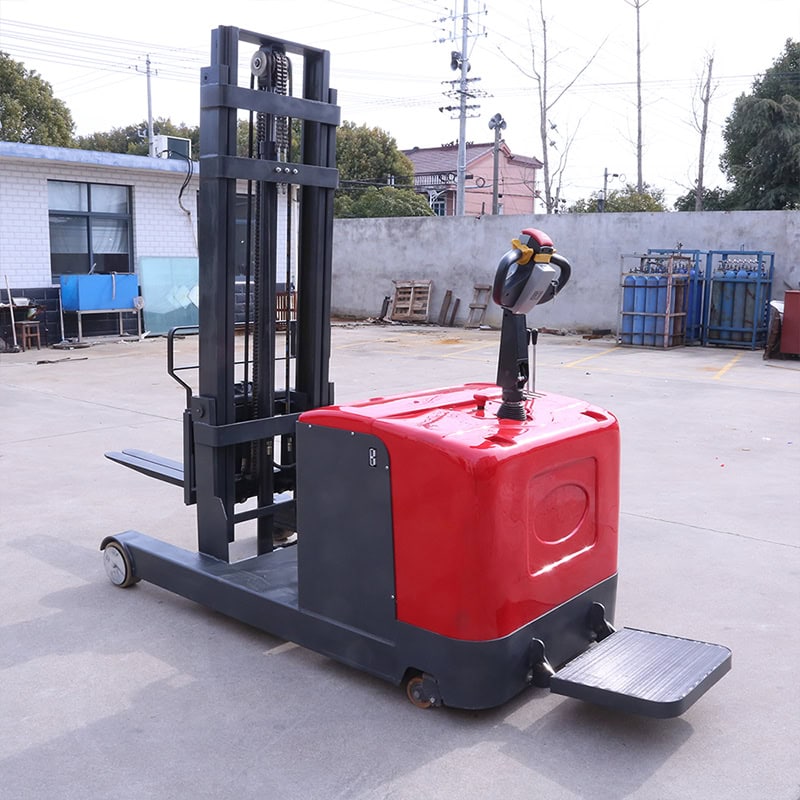

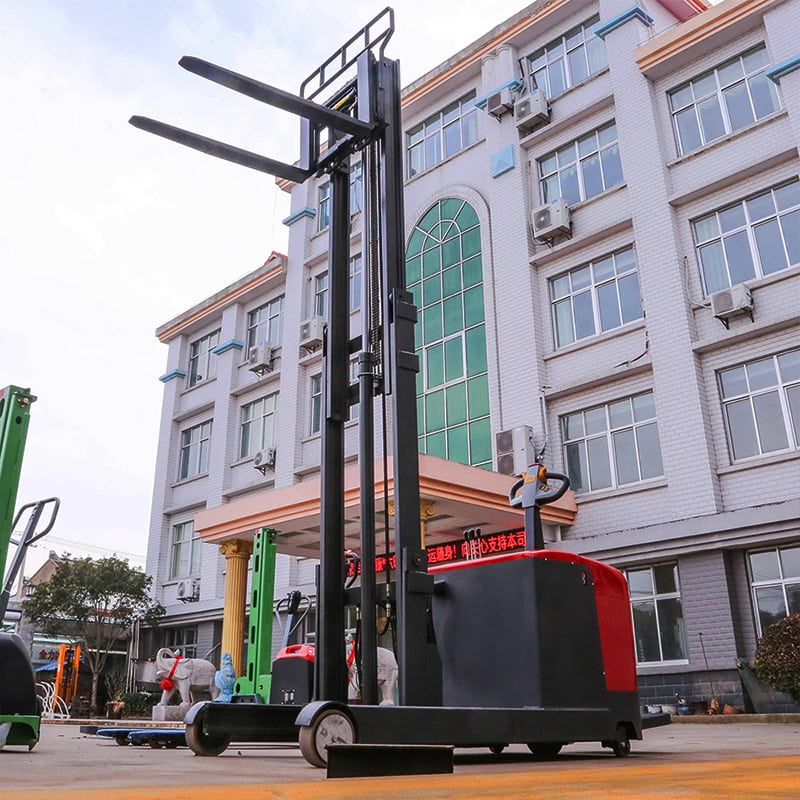

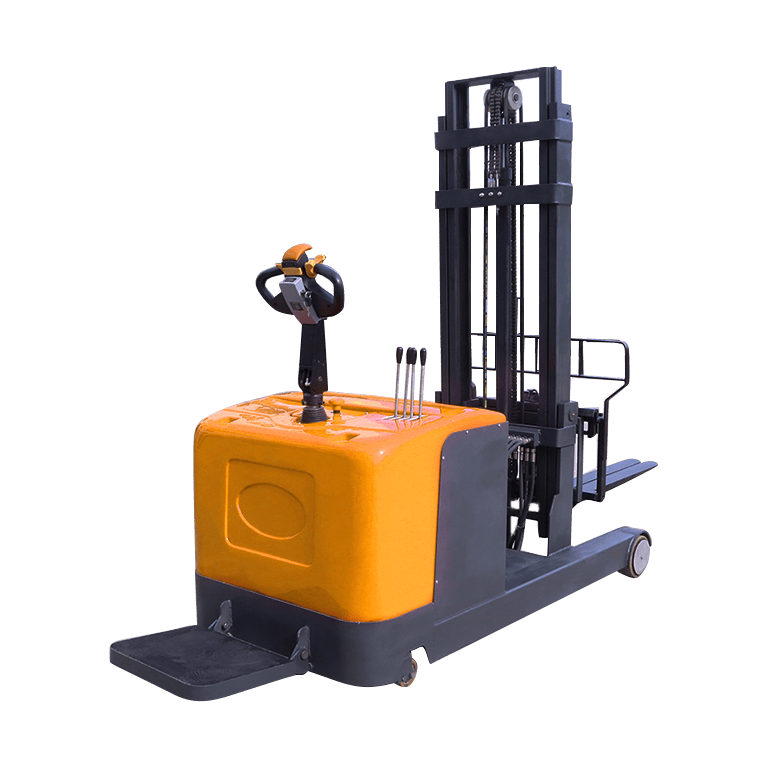

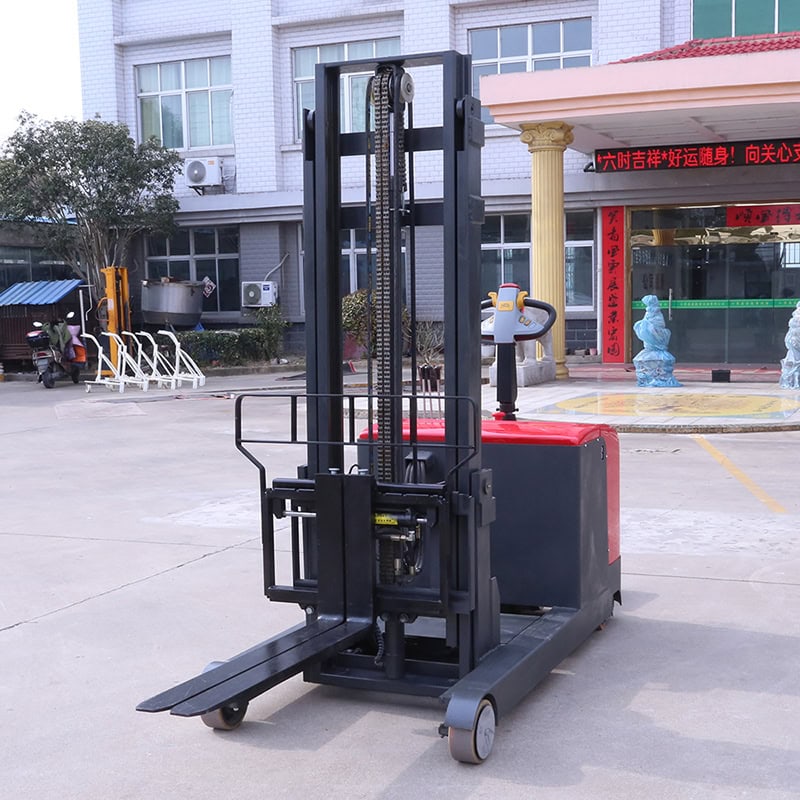

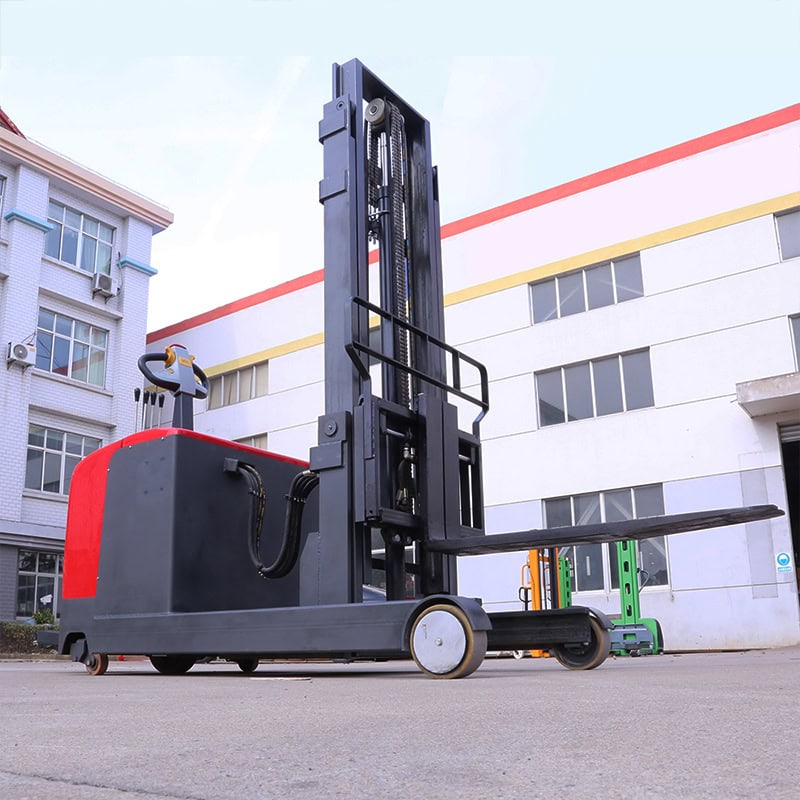

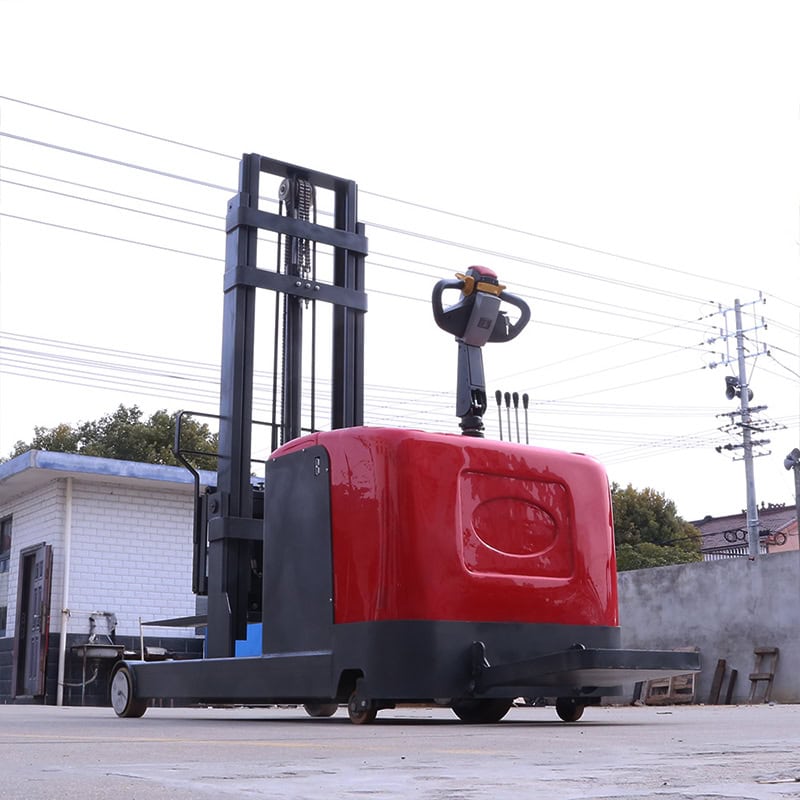

Stand-on Electric Reach Stacker
Models: ST - 05
1T/1.5T/2T
Load Capacity
3,000 mm
Lift Height
2200 mm
Min. Turning Radius
Stand-On
Operation Mode
Get a quote
Get a quote
Features
Gallery
Specifications
| Model | Electric Reach Stacker |
| Rated Capacity | 1000 / 1500 / 2000 kg |
| Lifting Height | 1600 / 2000 / 3000 / 4000 / 5000 mm |
| Standard Lifting Height | 3000 mm |
| Overall Length | 3200 mm |
| Overall Width | 1050 mm |
| Overall Height | 1580 / 1830 / 2080 / 2330 mm |
| Min. Turning Radius | 2200 mm |
| Lifting Motor | 2.2 kW |
| Driving Motor | 1.5 kW |
| Battery Capacity | 24V / 210Ah |
| Service Weight | 1.6 T |
