Electric Walkie Stacker
Models: ST - 03
1,500 kg / 2,000 kg
Load Capacity
3,500 mm
Lift Height
1,688 mm
Min. Turning Radius
Walk-Behind
Operation Mode

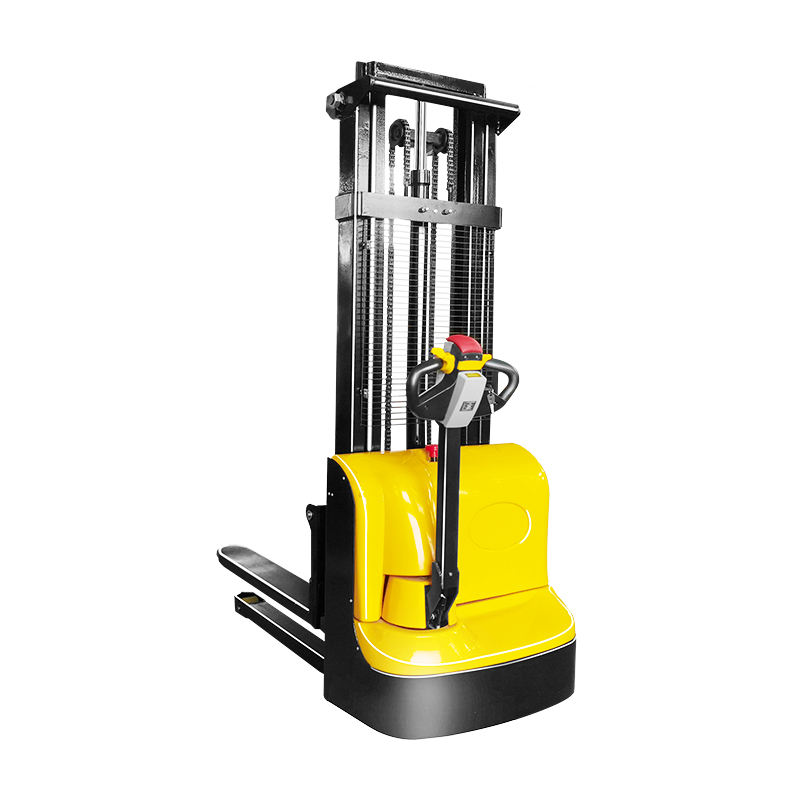

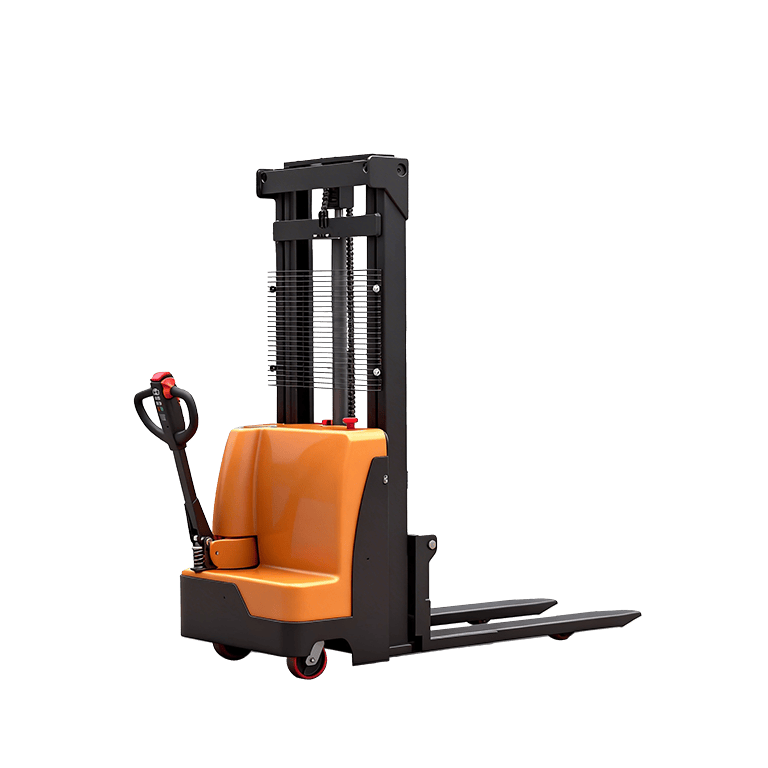

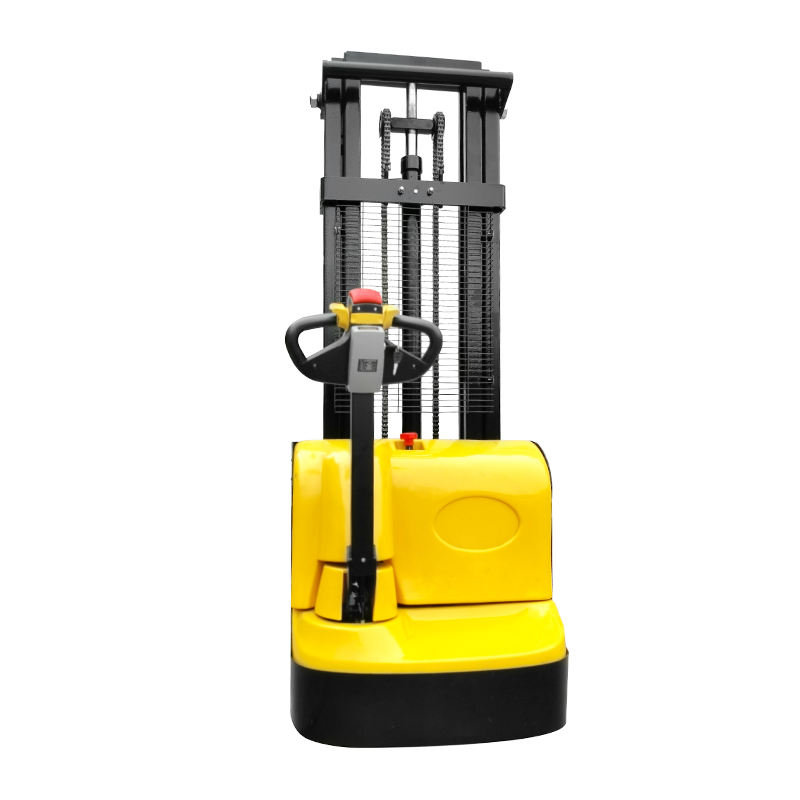

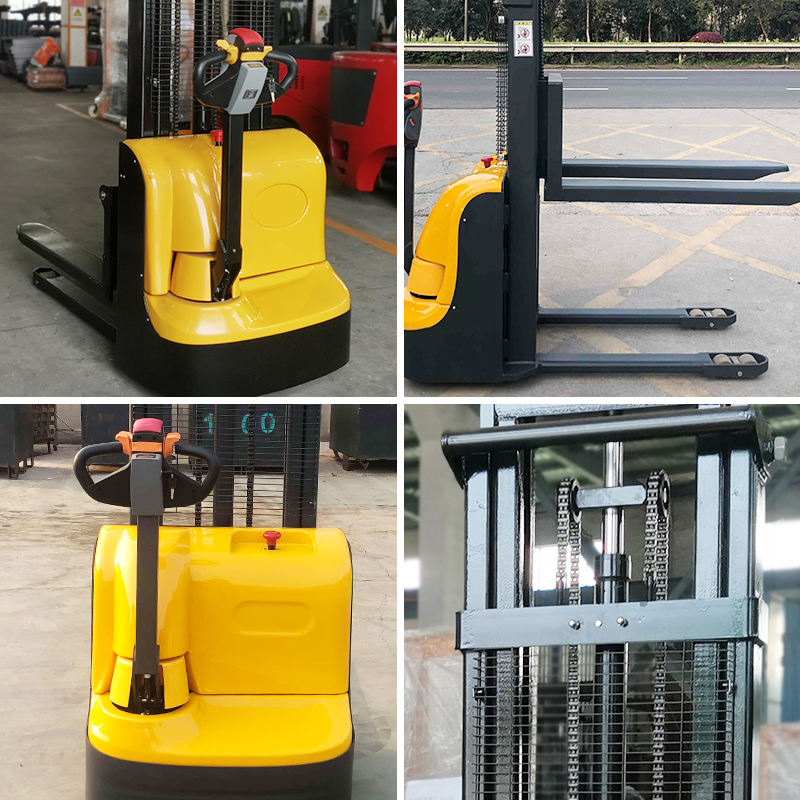

The HJ Electric Walkie Stacker features a thickened mast, ergonomic operating handle, and single-chain load gantry. With a max lift height of 3,500mm and whisper-quiet electric drive, it is ideal for warehouses needing reliable floor-level to rack-height stacking without a rider platform.
Get a quote
Features
Gallery
Specifications
| Specification | Unit | 1.5T Model | 2.0T Model |
| Max. Load | kg | 1,500 | 2,000 |
| Lifting Height | mm | 3,500 | 3,500 |
| Drive Motor Power | kW | 1.5 | 1.5 |
| Lifting Motor Power | kW | 2.2 | 2.2 |
| Turning Radius | mm | 1,688 | 1,688 |
| Ground Clearance | mm | 90 | 90 |
| Fork Size | mm | 50×160×1,150 | 50×160×1,200 |
| Vehicle Size (L×W×H) | mm | 1,970×790×1,580 | 1,850×850×1,580 |
| Vehicle Weight | kg | 550 | 590 |
| Gantry Type | — | Single Chain Load | Single Chain Load |
