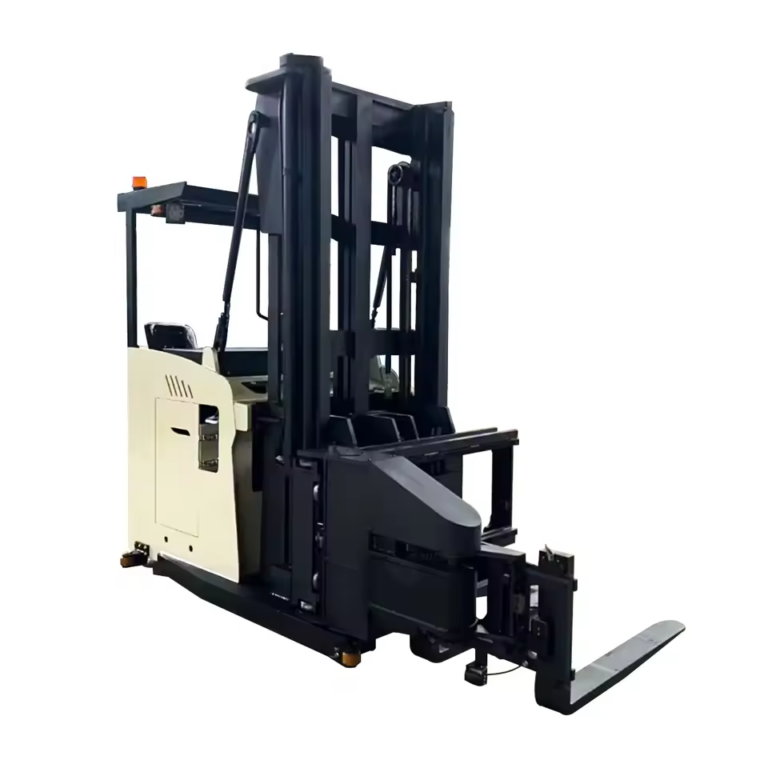

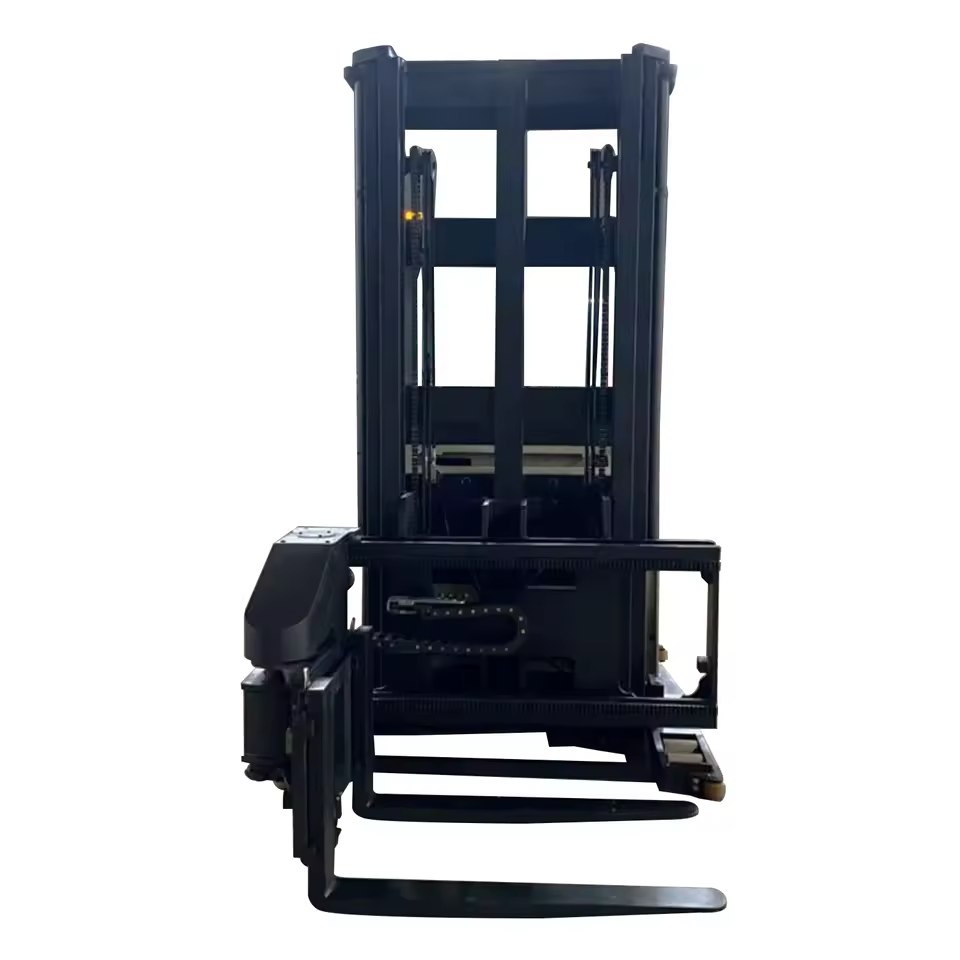

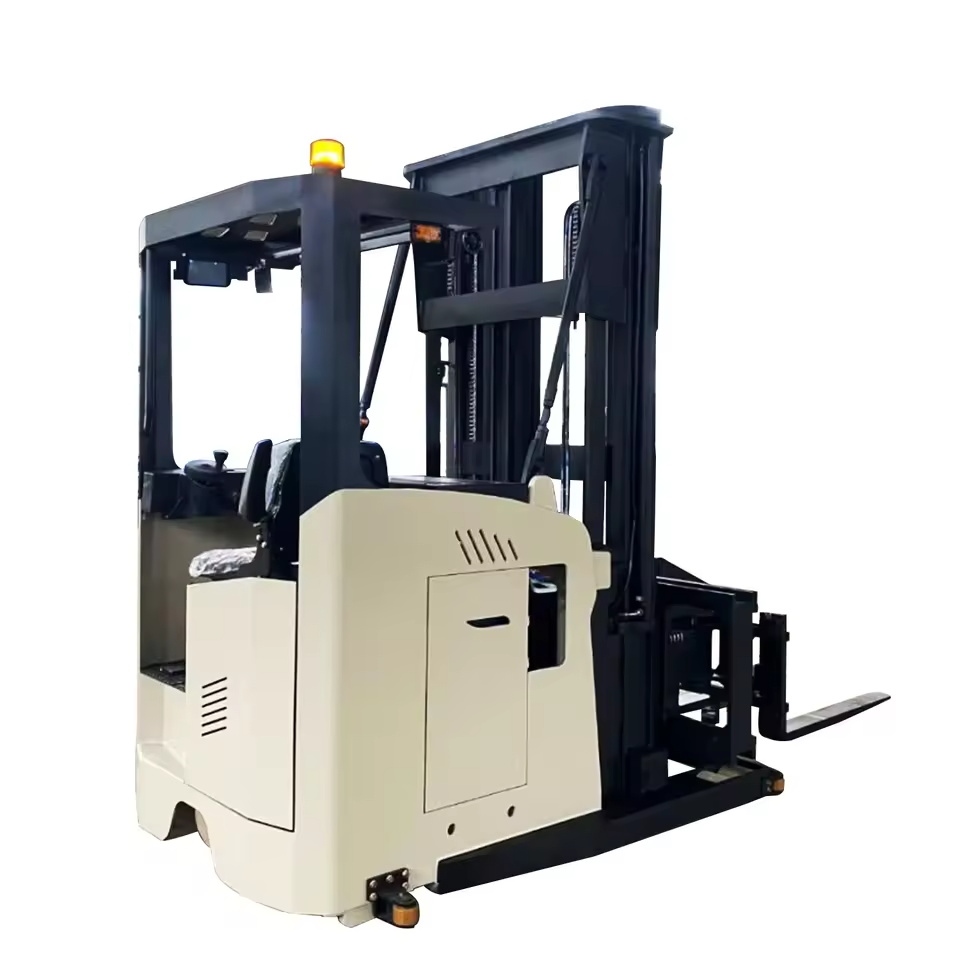

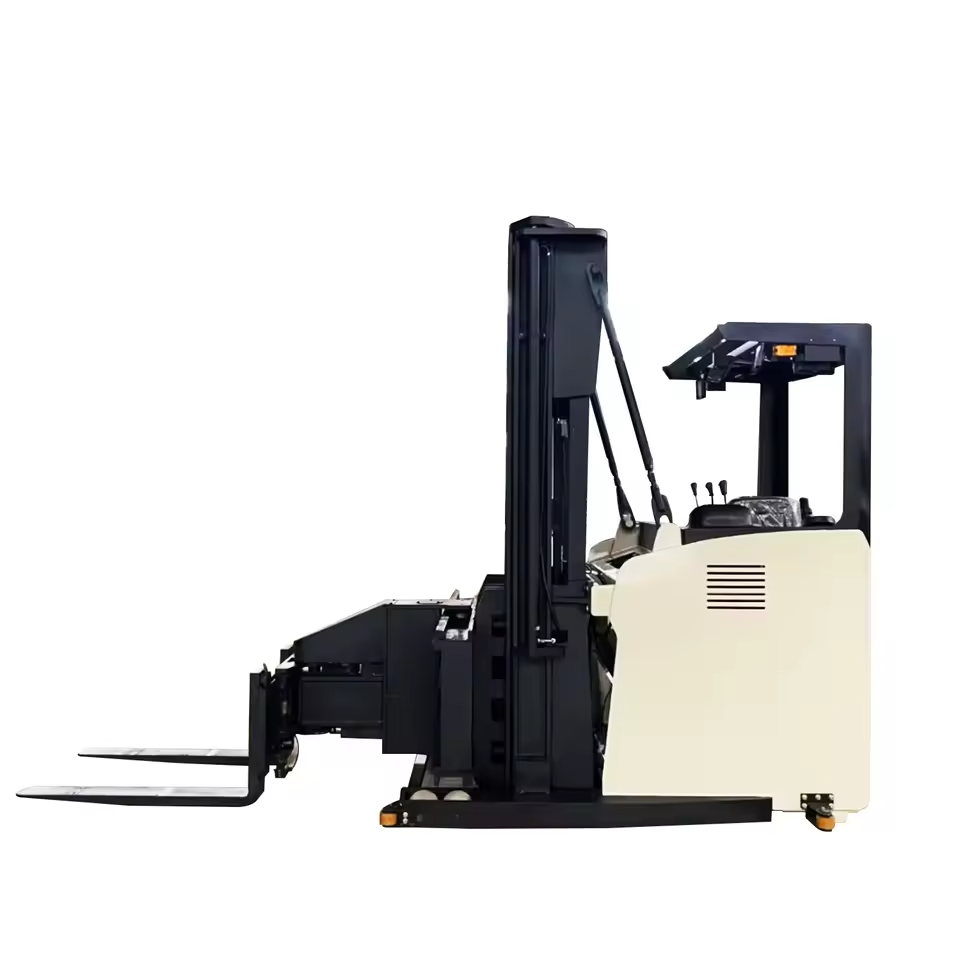

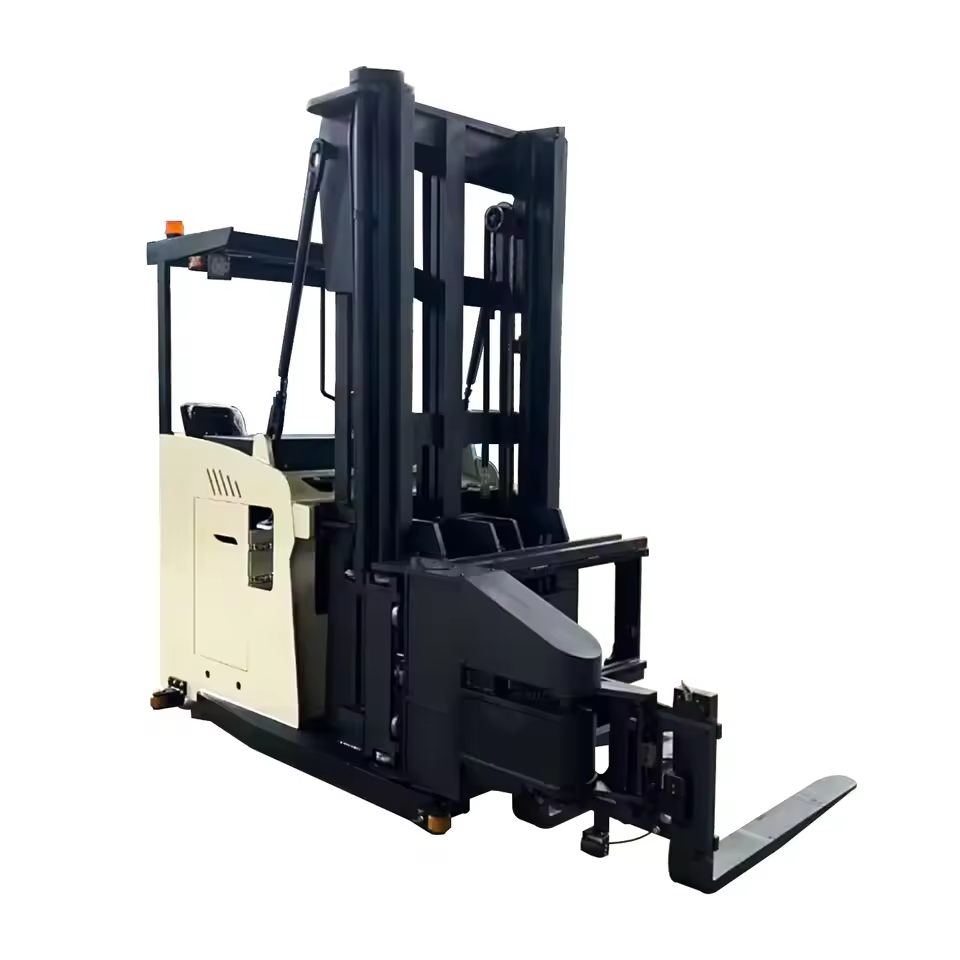

Sit-Down Turret Truck
Models: CSD - 1.5 Ton
The HUAJING DDT Series is a sit-down turret truck built for very narrow aisle (VNA) warehouses where operators run full-day shifts at extreme heights. With 180° fork rotation, aisles as narrow as 1,620mm, and lift heights up to 9,000mm, it handles high-bay racking up to 7 tiers without ever turning the truck body.
The seated cabin with ergonomic controls reduces fatigue across 8-hour and multi-shift operations — a critical advantage over stand-up models when operators work continuously at height. Powered by a 48V system with 6.5 kW AC drive motor and CURTIS controllers, it delivers smooth positioning and reliable performance in cold storage, high-density distribution centers, and automated VNA facilities.
Auto High-Lift Deceleration
Automatically reduces travel and fork speed at height — protecting operators, loads, and racking structures.
Ultra-Narrow 1,620mm Aisle Operation
Works in aisles barely wider than the pallet itself — maximize pallet positions per warehouse footprint.
9,000mm Lift Height
Reaches high-bay racking up to 9 meters, covering 6–7 tier storage systems in a single truck.
180° Fork Rotation
Turret head picks and places on both sides of the aisle without repositioning the truck — doubling throughput per aisle pass.
Guide Rail Compatible
Optional guide rail system centers the truck automatically in the aisle — reducing rack damage and enabling precise positioning at extreme heights.
Auto High-Lift Deceleration
Automatically reduces travel and fork speed at height — protecting operators, loads, and racking structures.
| Specification | Unit | CSD15 (Seated) |
| Rated Load | kg | 1,500 |
| Max. Lift Height | mm | 9,000 |
| Free Lift Height | mm | 3,115 |
| Min. Stacking Aisle Width | mm | 1,620 |
| Battery | V / Ah | 48 / 420 |
| Drive Motor | kW | 6.5 (AC) |
| Overall Size (L×W) | mm | 3,030 × 1,575 |
| Vehicle Weight (incl. battery) | kg | 7,300 |
