Aerial Work Platforms
Narrow-Body Electric Scissor Lift
Models: MP-MINI
4m / 6m
Platform Height
230 kg
Load Capacity
Up to 1680×780 mm
Platform Size
DC Motor / 220V Battery
Drive System
At 700mm wide, this machine fits through standard commercial doorways without disassembly. DC motor drive moves it through corridors and into position. 220V battery powers both travel and lifting — zero emissions, near-silent throughout.
Available in 4m and 6m platform heights, with a load capacity of 230kg. Built for supermarkets, retail stores, and any indoor workspace where a standard lift simply won’t fit.
Get a quote
Features

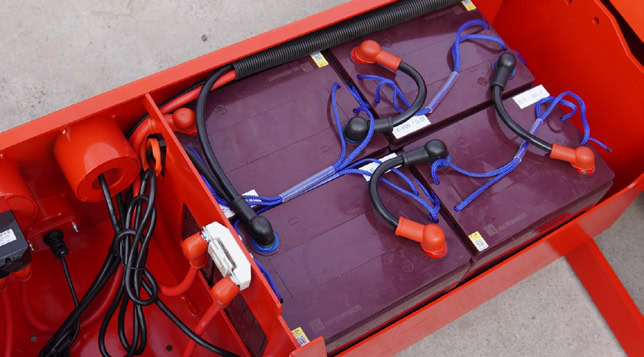

Battery
Control buttons
Extended platform
Internal power unit
Platform ladder
Silent non-marking tires
Specifications
| Model | Platform Height | Max Working Height | Safe Working Load | Platform Size | Overall Dimensions (L×W×H) | Travel Speed | Battery | Machine Weight | Wheelbase |
| MP-mini-4 | 4m | 6m | 230kg | 1300×680mm | 1440×700×1860mm | 3.5km/h | 2×12V/80Ah | 860kg | 1020mm |
| MP-mini-6 | 6m | 8m | 230kg | 1680×780mm | 1820×780×2020mm | 3.5km/h | 4×6V/200Ah | 1200kg | 1357mm |
