Aerial Work Platforms

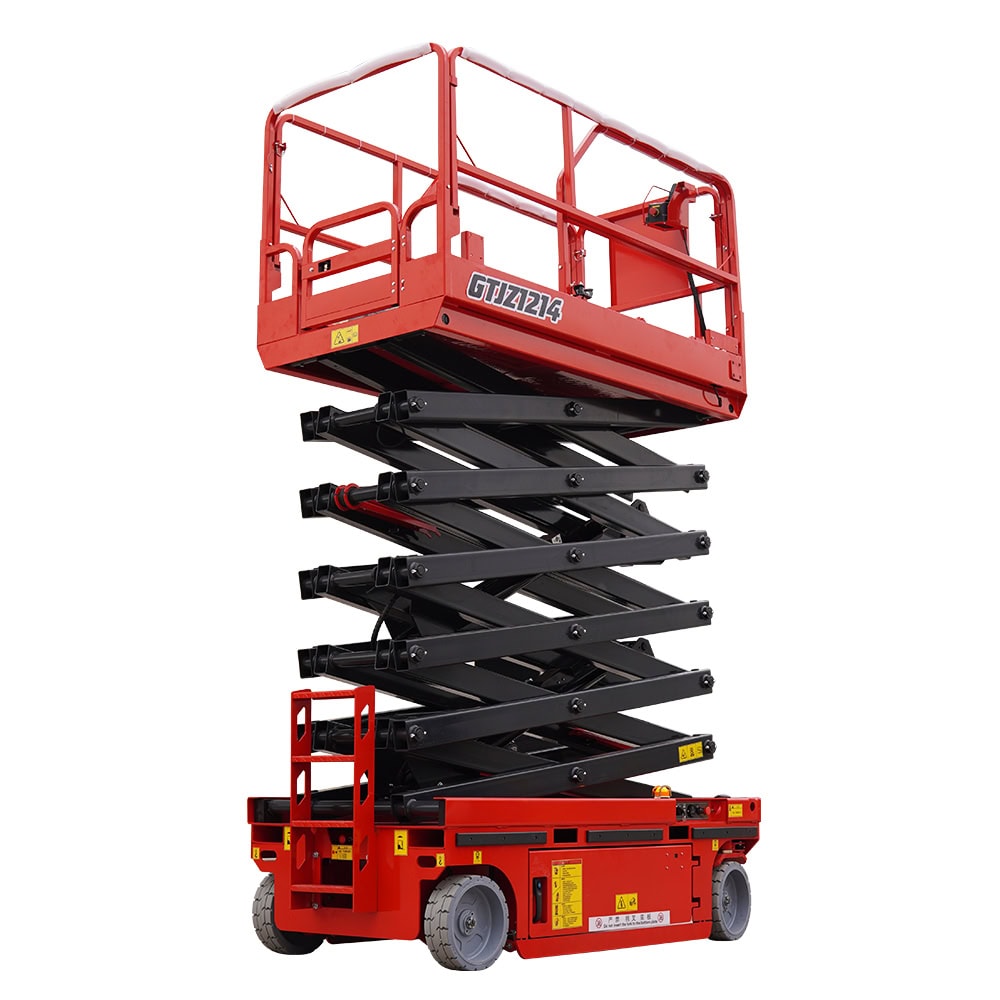

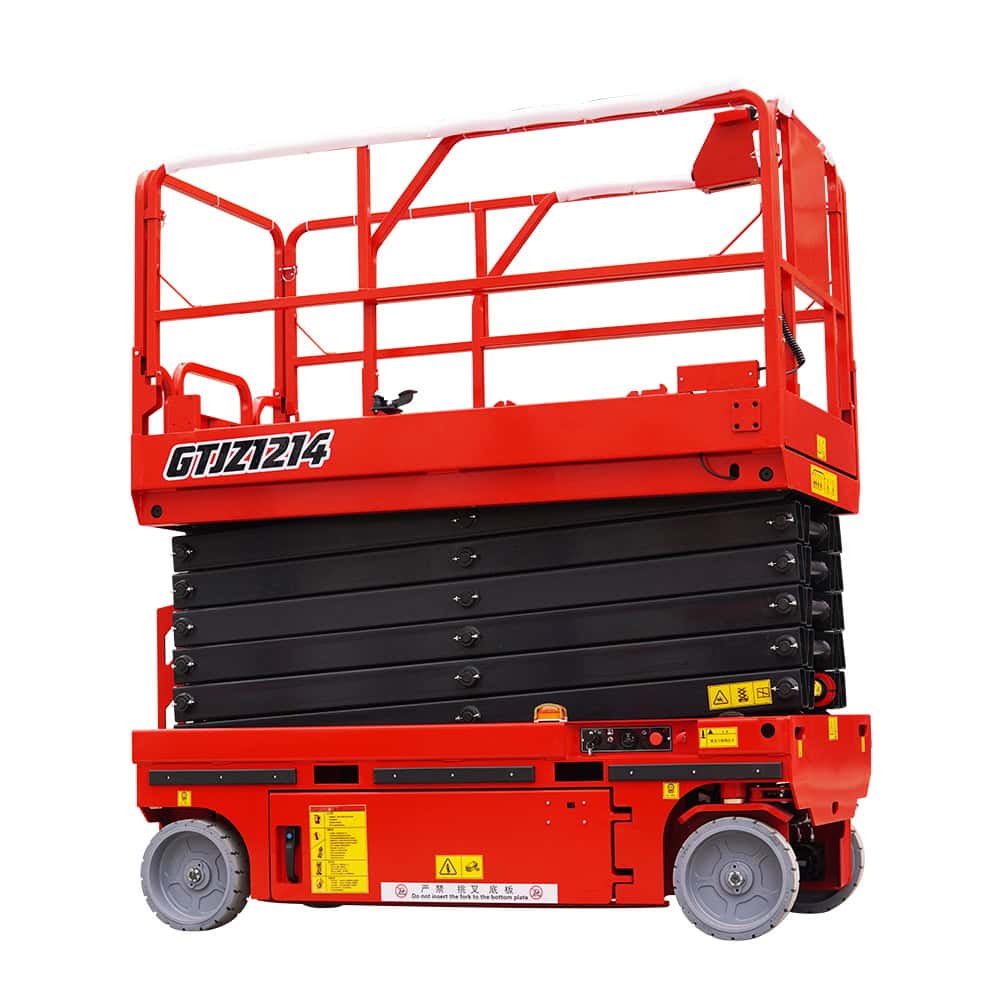

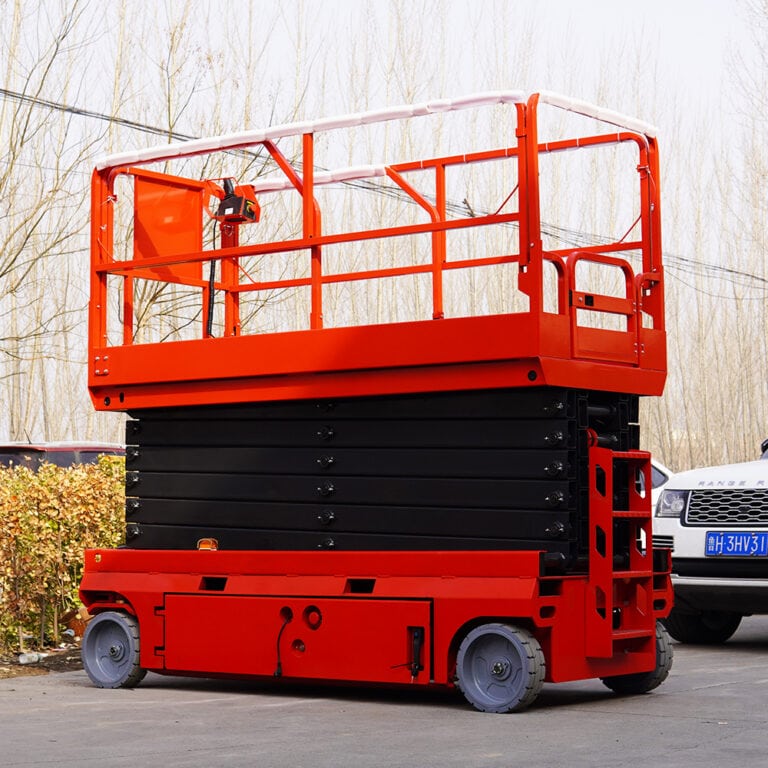

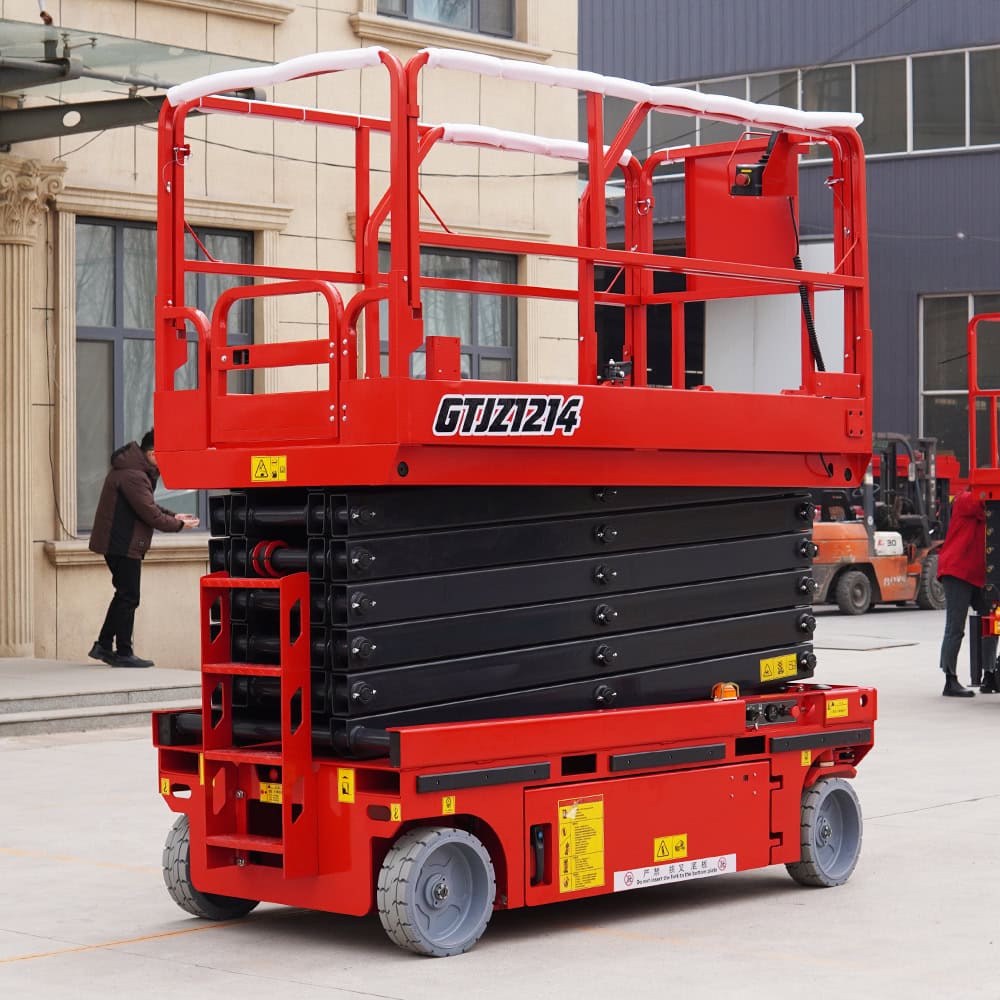

Self-Propelled Scissor Lift
Models: MP - GTJZ6/16
6m – 16m
Platform Height
227 – 450 kg
Load Capacity
Up to 3050×1130 mm
Platform Size
Hydraulic Motor / AC Motor
Drive System
Battery-powered drive system moves the machine independently to any position on site — no cables, no outlet required. Available with hydraulic motor drive for general construction and warehouse use, or AC motor drive for clean, low-noise environments with no hydraulic oil or fluid changes.
Platform height ranges from 6m to 16m with load capacity up to 450kg. The most versatile model in our range.
Get a quote
Features

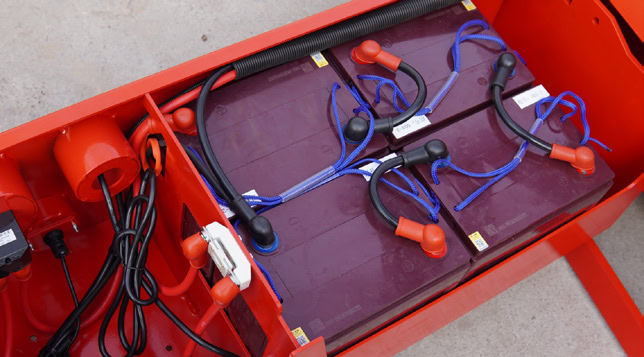

Battery
Control buttons

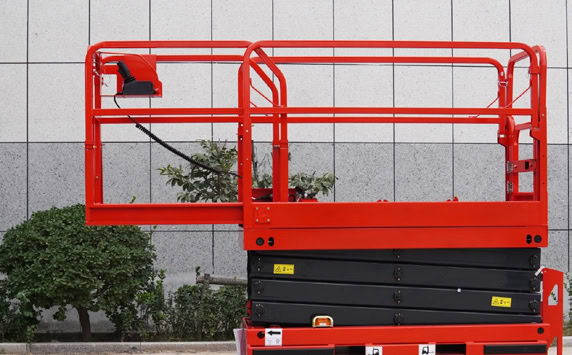

Extended platform

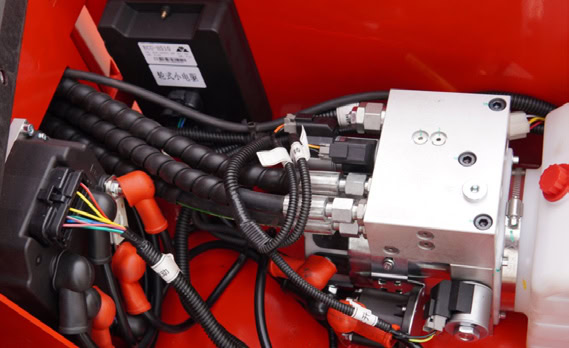

Internal power unit

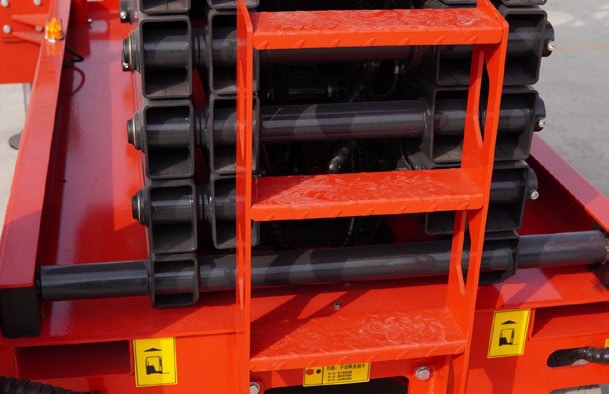

Platform ladder

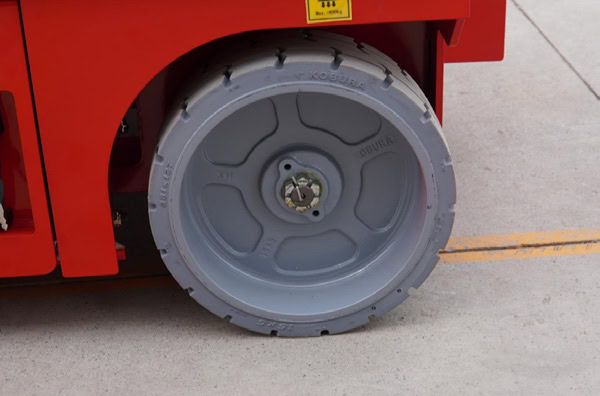

Silent non-marking tires
Specifications
| Model | Platform Height | Max Working Height | Safe Working Load | Platform Size | Overall Dimensions (guardrails up) | Overall Dimensions (guardrails folded) | Travel Speed (folded) | Travel Speed (lifted) | Battery | Machine Weight |
| MP-GTJZ-8 | 8m | 10m | 450kg | 2270×1130mm | 2390×1160×2340mm | 2390×1160×1820mm | 3.5km/h | 0.8km/h | 4×6V/200Ah | 2250kg |
| MP-GTJZ-10 | 10m | 12m | 320kg | 2270×1130mm | 2390×1160×2470mm | 2390×1160×1940mm | 3.5km/h | 0.8km/h | 4×6V/200Ah | 2550kg |
| MP-GTJZ-12 | 12m | 14m | 320kg | 2270×1130mm | 2390×1160×2600mm | 2390×1160×2060mm | 3.5km/h | 0.8km/h | 4×6V/200Ah | — |
| MP-GTJZ-14 | 14m | 16m | 230kg | 2630×1130mm | 2790×1400×2600mm | 2790×1400×2060mm | 2.5km/h | 0.8km/h | 4×6V/240Ah | 3300kg |
| MP-GTJZ-16 | 16m | 18m | 320kg | 3040×1130mm | 3200×1430×2820mm | 3200×1430×2200mm | 3.5km/h | 0.8km/h | 4×6V/240Ah | 4340kg |
